Nom du produit :

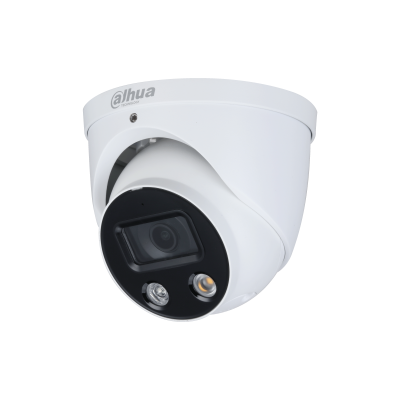

IPC-HDW3849H-AS-PV-S3
Caméra réseau WizSense à globe oculaire à focale fixe et à dissuasion active à double éclairage intelligent de 8 MP
> Capteur d’image CMOS 8 MP 1/2,8″, faible luminance et haute définition
image.> Sorties max. 8 MP (3840 × 2160)@25/30 fps.· Codec H.265, taux de compression élevé, débit binaire ultra-faible.· Lumière chaude intégrée et LED IR ; le max. La distance d’éclairage IR est de 30 m
et la distance de lumière chaude est de 30 m.> ROI, SMART H.264+/H.265+, AI H.264/H.265, codage flexible, applicable
à divers environnements de bande passante et de stockage.> Mode de rotation, WDR, 3D NR, HLC, BLC, tatouage numérique, applicable
à diverses scènes de surveillance.> Surveillance intelligente : Intrusion, tripwire (les deux fonctions prennent en charge la
classification et détection précise du véhicule et de l’humain).> Détection d’anomalie : détection de mouvement, masquage de confidentialité, scène
déconnexion réseau, conflit IP, accès illégal et détection de tension. > Alarme : 1 entrée, 1 sortie ; audio : 1 entrée, 1 sortie ; prend en charge max. Micro SD 256 Go
carte; doubles micros intégrés ; Haut-parleur 1 ch.> Alimentation 12 VDC/PoE.· Protection IP67.· Alarme sonore et lumineuse (lumières rouges et bleues).· SMD 3.0.· Armement/désarmement en une seule pression via l’entrée d’alarme
obtenez votre devis gratuit
Demande de devis
Description
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.8″ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM | 512 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | ﹥ 56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illumination Distance | 30 m (98.43 ft) (IR) 30 m (98.43 ft) (warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator On/Off Control | Auto; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator Number | 1 (IR LED) 1 (warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens
Lens
Lens TypeFixed-focalMount TypeM12Focal Length2.8 mm; 3.6 mmField of View2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125°
3.6 mm: Horizontal: 85°× Vertical: 45°× Diagonal: 100°Iris TypeFixedClose Focus Distance2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (6.23 ft)DORI DistanceLensDetectObserveRecognizeIdentify2.8 mm91.0 m (298.56 ft)
36.4 m
( 119.42 ft)
18.2 m
(59.71 ft)
9.1 m
(29.86 ft)
3.6 mm107.6 m (353.02 ft)
43.0 m
( 141.08 ft)
21.5 m
(70.54 ft)
10.8 m
(35.43 ft)
Professional, intelligent
IVS (Perimeter Protection)Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)SMD 3.0Less false alarm, longer detection distanceIntelligent SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)Smart CodecSmart H.265+; Smart H.264+AI CodingAI H.265; AI H.264Video Frame RateMain stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Stream Capability3 streamsResolution8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)Bit Rate ControlCBR/VBRVideo Bit RateH.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbpsDay/NightAuto (ICR)/Color/B/WBLCYesHLCYesWDR120 dBScene Self-adaptationYesWhite BalanceAuto; natural; street lamp; outdoor; manual; regional customGain ControlAuto; manualNoise Reduction3D NRMotion DetectionOFF/ON (4 areas)Region of Interest (RoI)Yes (4 areas)Smart IlluminationYesDefogYesImage Rotation0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)MirrorYesPrivacy Masking8 areasAudioBuilt-in MICYesAudio CompressionPCM; G.711a; G.711Mu; G.726; G.723
Information additionnelles
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
NetworkRJ-45 (10/100 Base-T)SDK and APIYesCyber SecurityVideo encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgradeProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMPInteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; P2P; MilestoneUser/Host20 (Total bandwidth: 72 M)StorageFTP; SFTP; Micro SD card (Support max. 256 G); NASBrowserIE: IE8/9/11
Chrome
FirefoxManagement SoftwareSmart PSS; DSS; DMSSMobile PhoneiOS; Android
Certification
Certification
CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input1 channel (RCA port)Audio Output1 channel (RCA port)Alarm Input1 channel in: 5 mA 3V–5 VDCAlarm Output1 channel out: 300 mA 12 VDC
Power
Power Supply12 VDC/PoE (802.3af)Power ConsumptionBasic: 2.9 W (12 VDC); 5.0 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.8 W (12 VDC) 9.6 W (PoE)
Environment
Operating Conditions–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RHStorage Conditions–40 °C to +60 °C (–40 °F to +140 °F)Protection GradeIP67
Structure
CasingMetalDimensions110.9 mm × Φ122.0 mm (4.4″ × Φ4.8″)Net Weight745 g (163.1 lb)Gross Weight915 g (200.6
